OEM Controller Integrated Driver Function Support 6 Pairs Infrared Sensors for Sliding Gate, Swing Gate, Speed Gate Turnstile

تمام دسته ها

موتور راننده فولکلور الکتریکی

با ما تماس بگیرید

Ms. Chilli

Chillijy@jiayume.com

15218146199

15218146199

اکنون تماس بگیرید

OEM Controller Integrated Driver Function Support 6 Pairs Infrared Sensors for Sliding Gate, Swing Gate, Speed Gate Turnstile

نام تجاری:	CSJY
شماره مدل:	JMC4805
مقدار تولیدی:	2
قیمت:	Negotiate
جزئیات بسته بندی:	cartons
شرایط پرداخت:	T/T

اطلاعات دقیق

توضیحات محصول

اطلاعات دقیق

Place of Origin:

China

گواهی:

Input Voltage:

DC 24 / 48V

Rated/peak current:

5A / 15A

Adapted motor:

Low-voltage servo motors

Encoder Feedback:

Incremental (pulse type)

communication interface:

RS232 / RS485 / CAN

hardware protection:

 Over-current protection Short-circuit protection Reverse connection protection

Light Output:

Welcome Lights | Passage Lights | RGB Lights

sound output:

Buzzer, voice each 1 channel

infrared input:

6 independent interfaces, PNP, NPN compatible

Input and output signals:

2 door openers + 3 expansion inputs/outputs

Power down and open the gate:

External 12V 1.3AH battery

Multi-function keys:

Opening doors, setting zero, restoring defaults, etc.

Operating Temperature:

-20°C ~ 55°C

Supply Ability:

5000pcs/month

توضیحات محصول

OEM Controller Integrated Driver Function Support 6 Pairs Infrared Sensors for Sliding Gate, Swing Gate, Speed Gate Turnstile

Product description

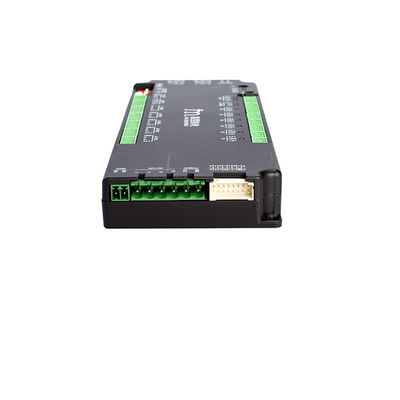

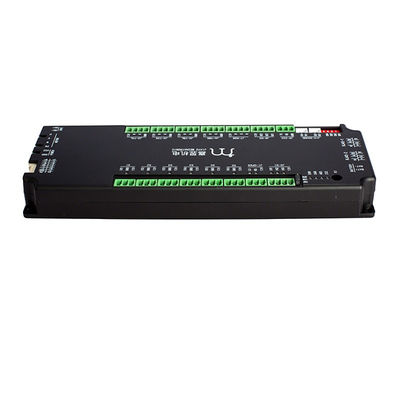

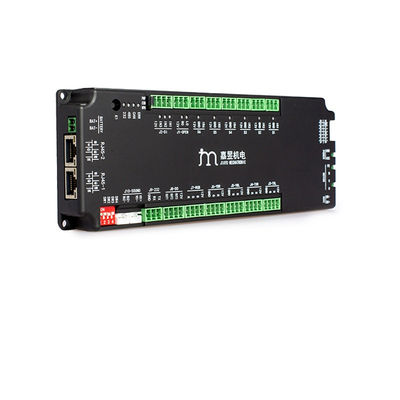

JMC4805 gate controller is a motor-driven + pass logic servo electric control product launched by Jiayu

Mechatronic for pedestrian access gate equipment, supporting the speed pass gate, swing gate, wing gate,

translating gate and other types of equipment to meet the needs of the bus station, commercial buildings,

hospitals, schools and other access control application scenarios.

Technical parameter

Input Voltage	DC 24 / 48V
Rated/peak current	5A / 15A
Adapted motor	Low-voltage servo motors
Encoder Feedback	Incremental (pulse type)
communication interface	RS232 / RS485 / CAN
hardware protection	Over-current protection Short-circuit protection Reverse connection protection
Working environment	-20℃ ~ 55℃, humidity below 90% (no condensation)
Light Output	Welcome Lights \| Passage Lights \| RGB Lights
sound output	Buzzer, voice each 1 channel
infrared input	6 independent interfaces, PNP, NPN compatible

OEM Controller Integrated Driver Function Support 6 Pairs Infrared Sensors for Sliding Gate, Swing Gate, Speed Gate Turnstile 0

OEM Controller Integrated Driver Function Support 6 Pairs Infrared Sensors for Sliding Gate, Swing Gate, Speed Gate Turnstile 1

Application

This control board suitable for swing gate, speed gate, sliding gate hign-end turnstile gate's application.

OEM Controller Integrated Driver Function Support 6 Pairs Infrared Sensors for Sliding Gate, Swing Gate, Speed Gate Turnstile 2

OEM Controller Integrated Driver Function Support 6 Pairs Infrared Sensors for Sliding Gate, Swing Gate, Speed Gate Turnstile 3

RFQ

1. How about your company's actual strength?
We have more than 100 employees, a R&D group with 50 people,1 office and 1 factories. Factories and office buildings are larger than 1500 square meters.

2. How about the payment method?

Standard products: 30% deposit, 70% balance payment before shipment.

3. How long is your warranty period?

One-year guarantee & Life-time technology support.

4. How do you do after-sale service?
We provide life-time technology support online, by emails, video, phone etc. We have engineer speaking English, convenient to communicate with you directly.

5. How long is your warranty period?
One-year guarantee & Life-time technology support
