سرو موتور DC

24V 150W Brushless Servo Controller with 6-Pair Sensor Support for Tripod Turnstile Gates

تمام دسته ها

کنترل‌کننده گیت گردان

با ما تماس بگیرید

Ms. Chilli

Chillijy@jiayume.com

15218146199

15218146199

اکنون تماس بگیرید

24V 150W Brushless Servo Controller with 6-Pair Sensor Support for Tripod Turnstile Gates

نام تجاری:	CSJY
شماره مدل:	GMBC2406
مقدار تولیدی:	2
قیمت:	Negotiate
جزئیات بسته بندی:	کارتن
شرایط پرداخت:	T/T

اطلاعات دقیق

توضیحات محصول

اطلاعات دقیق

محل منبع:

گواهی:

دمای عملیاتی:

-20℃~+55℃

کلاس حفاظت موتور:

تایپ کنید:

درایور سروو DC

ولتاژ ورودی:

DC 24 ولت

مصرف برق:

150 وات

برنامه:

دروازه چرخشی، دروازه فلپ، دروازه سرعت، دروازه کشویی

قابلیت ارائه:

5000 عدد در هفته

برجسته کردن:

24V Input Voltage Brushless Servo Controller,150W Power Consumption DC Servo Driver,6-Pair Sensor Support Servo Motor Controller

150W Power Consumption DC Servo Driver

6-Pair Sensor Support Servo Motor Controller

توضیحات محصول

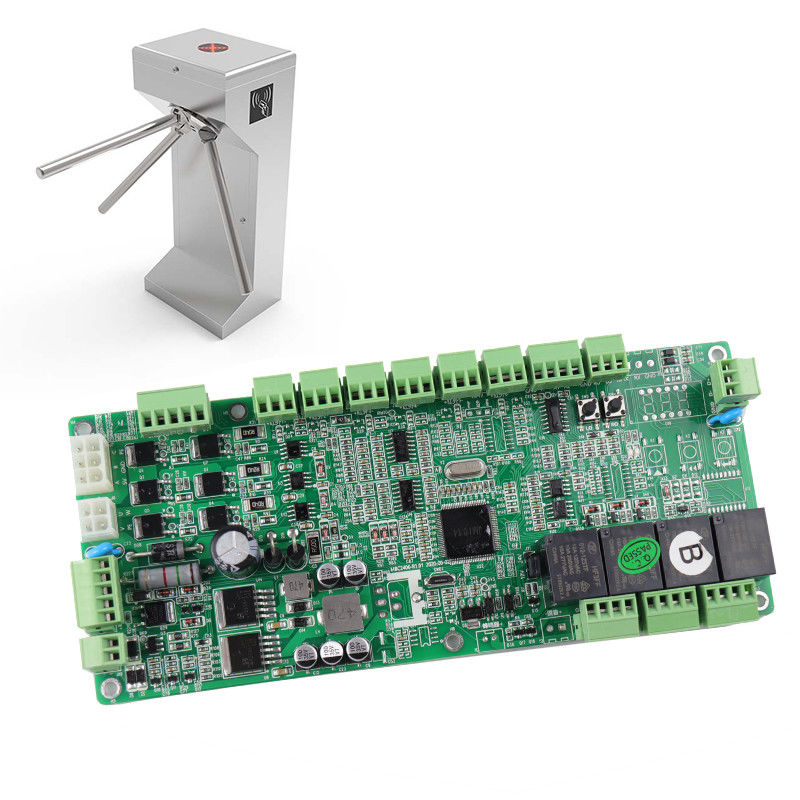

24V 150W MBC2406 Brushless Servo Controller

6-Pair Sensor Support | Tripod Turnstile Gate Driver

The MBC2406 is a high-performance 24V DC Brushless Servo Controller designed to meet the rigorous demands of tripod turnstiles, speed gates, and pedestrian access lanes. Delivering 150W of rated power, this intelligent driver is specifically engineered to manage the precise indexing and locking mechanisms required for three-arm tripod rotations.

What sets the MBC2406 apart is its advanced multi-sensor integration capability. It natively supports up to 6 pairs of sensors, allowing for comprehensive monitoring of gate position, zero point calibration, anti-pinch safety, and user passage detection.

Key Features

High-Density Sensor Interface: Features dedicated ports to support up to 6 pairs of external sensors for position encoders, safety photocells, passage confirmation sensors, and mechanical limit switches
Advanced Vector Control (FOC): Utilizes sinusoidal vector control (Field Oriented Control) to drive the brushless motor with zero standby current, quiet operation, and precise torque control
Integrated Fail-Safe Logic: Programmed to manage tripod turnstile mechanics with proper zero position locking torque and release state management for safety compliance
Wide Voltage Compatibility: Operates on 24V DC supply (18V-28V range) compatible with common low-voltage power supplies and backup battery systems
Robust Protection Circuitry: Industrial-grade protection against over-voltage, under-voltage, over-current, and over-temperature for high-traffic installations

Technical Specifications

Rated Power	150W
Operating Voltage	24V DC (18V-28V range)
Sensor Support	Up to 6 pairs of external sensors
Control Method	Field Oriented Control (FOC)
Application	Tripod turnstiles, speed gates, pedestrian access lanes

Frequently Asked Questions

What is your company's manufacturing capability?

We employ over 100 staff members with a 50-person R&D team, operating from 1 office and 1 factory spanning more than 1500 square meters.

What payment methods do you accept?

Standard products require 30% deposit with 70% balance payment before shipment.

What is your warranty policy?

We provide a one-year guarantee with lifetime technical support.

How do you handle after-sales service?

We provide lifetime technical support through online channels, email, video calls, and phone with English-speaking engineers for direct communication.
